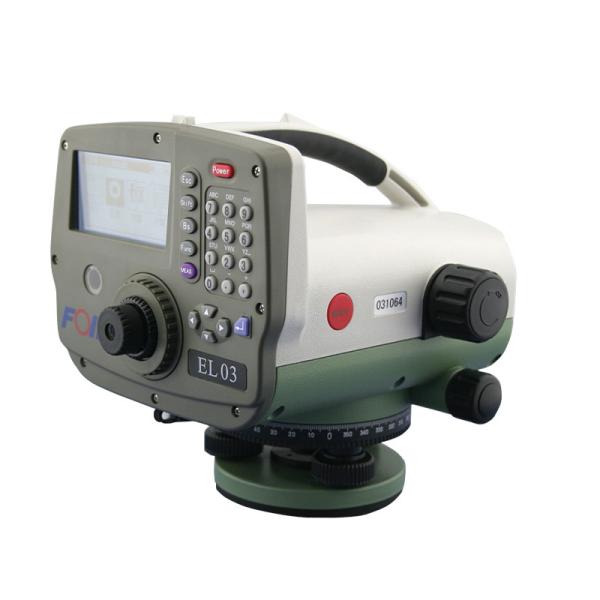

FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument

Brand Name : Stonex EL03 Level

Model Number : EL03

Place of Origin : China

MOQ : 1 set

Price : ＄1,800.00

Payment Terms : T/T, L/C

Delivery Time : 30 work day

Product Name : High precision electronic level

Customized support : OEM, ODM, OBM

Model : FOIF

Magnification : 32X

Compensation range : ±15′

compensating error : 0.2″

Display : LCD Display

shortest sighting distance : 1m

Time : 1s

usb data transfer : support

Operating time : >12 hours

Waterproof and dustproof : IP55

Contact Now

FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument

Product Description

High precision FOIF EL03 digital level instruments land survey

  • Range: 2-110 m
  • Time for single measurement: ≤ 2s
  • LCD display with illumination
  • Alphanumeric keyboard
  • Automatic height and delta height calculation
  • Optical reading is available
  • Internal memory (3000 points) or SD card for data storage, supports USB and RS-232C ports and (EL03) for data transfer
  • For measuring range: ≤110m
  • Accuracy EL03: Electronic ≤ ±0.3mm, Optical ≤ ±1.5mm
  • Reliable reading, even in dim light condition
  • Remote control measurement by (EL03)
  • Onboard programs, such as BF, BFFB, BFBF, BBFF, FBBF, stake out, intermediate
  • LCD display presents all important measured data at a glance and shows the next step to take
  • Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button
  • Quick height and distance result-the reading is displayed almost instantly with measurement

FOIF EL03 Digital Electronic Auto Level Construction Land Survey InstrumentFOIF EL03 Digital Electronic Auto Level Construction Land Survey InstrumentFOIF EL03 Digital Electronic Auto Level Construction Land Survey InstrumentFOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument

Specification

Model EL03
Accuracy
Standard deviation of km double run
Electronic measurement +/-0.3mm*
Optical measurement +/- l.5mm*
Electronic measurement
Time for single measurement ≤2s
Range 2-110m
Measurement modes Singel, average, tracking
Display resolution(m/in selectable)
Height 0.1mm/0.0001ft
Distance 1mm/0.001ft
Telescope
Clear objective aperature 45mm
Magnification 32x
Field of view at 100m 2.3m
Shortest focus distance 1.0m
Automatic compensator
Working range 14'
Setting accuracy +/-0.3"
Power
Battery 2000mAh Ni-MH rechargeable
Continuous operating time 12 hours
Measurement programs
On-board programs BF, BFFB, BFBF, BBFF, FBBF,
Stake out, intermediate
Onboard adjustment Yes
Others
Memory 3000 points, support SD card
Display LCD, 7lines*32characters
Keyboard Alphanumeric keyboard
Interface USB, RS232 optional
Sensitivity of circular level 8'/2mm
Water and dusp protection IP55
Operating temperature -20°C~50°C
Net weight 3kg


Why Choose Us

Certifications
FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument
Company Profile
FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument

Our Service
FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument
Packing & Delivery
FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field.

2.All products will have been strictly quality checked in factory before sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
